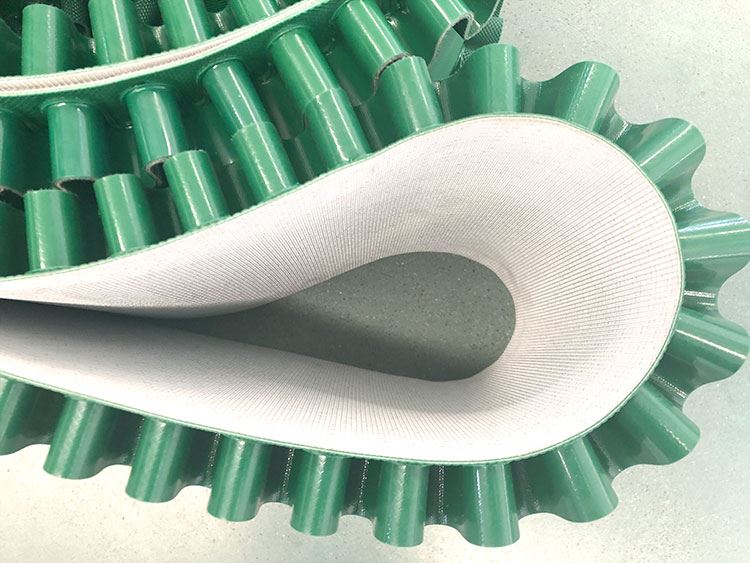

Green Pvc Corrugated Sidewall Conveyor Belt

The Green PVC Corrugated Sidewall Conveyor Belt is a lightweight industrial conveyor belt specifically designed for steep incline or vertical transport. This product uses high-strength PVC as its base material, equipped with corrugated sidewalls and transverse partitions, forming a continuous "bucket" structure that effectively prevents material slippage or spillage during inclined transport, allowing for material lifting at any angle from 0 to 90 degrees.

1. High-strength and high-wear-resistant base tape with large lateral stiffness and longitudinal flexibility.

2. High-strength hot vulcanized rubber corrugated rib.

3. Transverse partitions to prevent objects from sliding down. The bottom of the side wall is combined with the separator and the base band by thermal vulcanization. The height of the side wall and the separator can reach 40-630mm, and canvas is attached to the side wall to enhance the tear resistance of the side wall.

1. Material Conveying: Suitable for conveying grain, coal, powder and other bulk materials in factories, warehouses and agricultural environments.
2. Food Industry: For conveying vegetables, fruits or other bulk foods, especially for inclined conveyors that need to be sealed to prevent product loss.
3. Mining and Quarrying: Commonly used in the mining industry to transport mined materials such as ores, aggregates and gravel.
4. Recycling: Used in recycling plants to handle and sort bulk materials such as plastic bottles, waste or paper products.
5. Packaging: Used in packaging lines, especially in vertical applications or when materials must be conveyed without spillage in confined spaces.

1. Prevent material spillage: The corrugated sidewalls can effectively seal the material, even during steep angles of incline conveying.
2. Improve efficiency: The baffles and sidewalls ensure that the material is firmly fixed to the conveyor, thereby increasing throughput and reducing losses.
3. Cost-effective: PVC is a relatively affordable material, which is a cost-effective choice for many industries seeking durable and reliable conveyor belts.
4. Customizable: Sidewall height and PVC thickness can often be customized based on the specific material being conveyed and the required load capacity.

Installation Precautions
Ensure the conveyor head and tail wheels are parallel and aligned.
The side walls and partitions should be oriented in the same direction as the running direction.
Adjust the tension appropriately, avoiding excessive tightness or looseness.

Maintenance Recommendations
Regularly check the wear of the side walls and partitions.
Clean any residual material adhering to the partitions.
Inspect the joints to ensure a secure connection.

1. Q: May I know which payment will be accepted by your company?

A: So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.

2. Q: About the after-sales service, how can you solve the problems occurred of your overseas customers in time?

A: The warranty of our machine is normally 2 years. During this period, we will arrange the international express immediately to make sure the replacement parts are delivered as soon as possible.

3. Q: After we place an order, will you arrange the inspection of the conveyor belt at present?

A: All the belts will be tested well before delivery, so almost all of them can be used directly. The belt is easy to be installed, if you customer needs our assistance, we will be pleased to send you the video guidance for installation.

4. Q: How can I get the after-service?

A: We will send you the spare parts for free if the problems are caused by us.

If it is the man-made problems, we also send the parts, it is charged. Any problem, you can call us directly.
