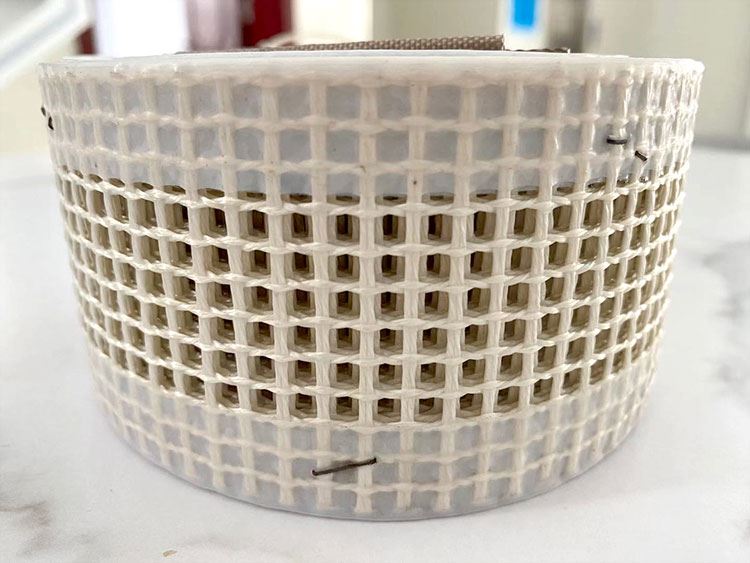

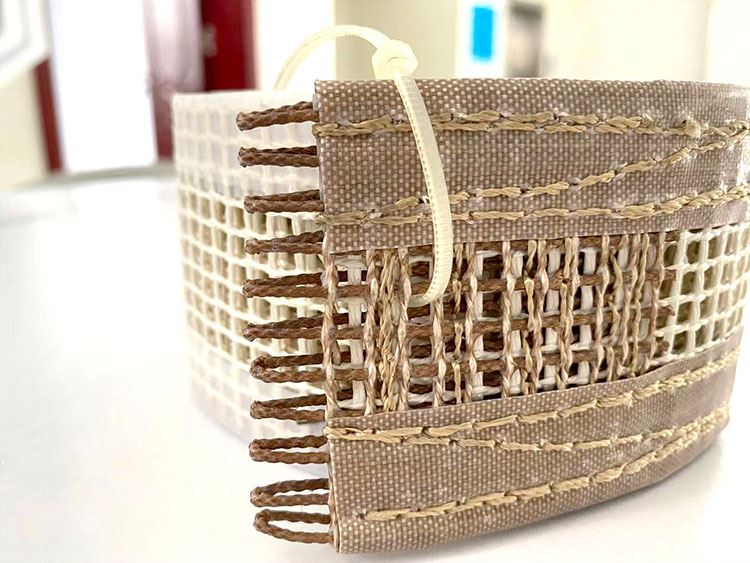

Teflon Mesh Conveyor Belt is a mesh conveyor belt made of fiberglass cloth as the base material and coated with polytetrafluoroethylene (Teflon, commonly known as Teflon) on the surface. It combines the high strength of fiberglass and the high and low temperature resistance, anti-adhesion and corrosion resistance of Teflon. This type of conveyor belt is widely used in applications involving high temperature, sticky materials or processes that require a non-stick surface.
Parameter
|
Hole diameter |
Material |
Thickness |
Weight |
Temp resistance |
Max Width |
tensile strength |
|
1x0.5mm |
glass fiber |
0.65mm |
560g /m 2 |
-70 -260 ℃ |
3.25m |
310/290 N/cm |
|
1x1mm |
glass fiber |
0.65mm |
520g /m 2 |
-70 -260 ℃ |
3.55m |
310/290 N/cm |
|
2x2.5mm |
glass fiber |
0.7mm |
640g /m 2 |
-70 -260 ℃ |
3.65m |
350/310 N/cm |
|
4x4mm |
glass fiber |
1.0mm |
580g /m 2 |
-70 -260 ℃ |
4.2m |
390/320 N/cm |
|
4x4mm |
glass fiber |
1.3mm |
740g /m 2 |
-70 -260 ℃ |
3.85m |
390/320 N/cm |
|
10x10mm |
glass fiber |
0.9mm |
415g /m 2 |
-70 -260 ℃ |
3.55m |
360/300 N/cm |
|
4x4mm |
Kevlar fiberglass |
1.5mm |
934g /m 2 |
-70 -260 ℃ |
2.75m |
895/370 N/cm |
|
4x4mm |
Kevlar |
1.2mm |
600g /m 2 |
-70 -260 ℃ |
4m |
895/370 N/cm |
Feature
1. Used between low temperature -70℃ and high temperature 300℃, it has weather resistance and anti-aging. After practical application, it can be placed for 200 days under 250℃ high temperature, not only the strength will not decrease, but the weight will not decrease.
2. Non-adhesive: It is not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to the surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
3. Chemical resistance, corrosion resistance of strong acid, strong alkali, aqua regia and various organic solvents.
4. Good dimensional stability (elongation coefficient less than 5‰) and high strength. Has good mechanical properties.
5. Anti-bending fatigue, can be used for smaller wheel diameter.
6. Drug resistance and non-toxicity. It can withstand almost all pharmaceutical items.
7. Fire and flame retardant.
8. Air permeability --- the air permeability of the conveyor belt, reducing heat source consumption and improving drying efficiency.
Common Application
1. Food industry: baking (biscuits, crackers), dough fermentation, frying and food drying.
2. Textile and printing: screen printing, UV curing and dye fixation.
3. Industrial processes: lamination, composite curing and plastic welding.
4. Packaging: heat sealing and shrink packaging.
Maintenance Tip
1. Clean with a mild detergent (avoid abrasives).
2. Check for wear, abrasion, or coating degradation.
3. Store properly to avoid wrinkling or moisture damage.
