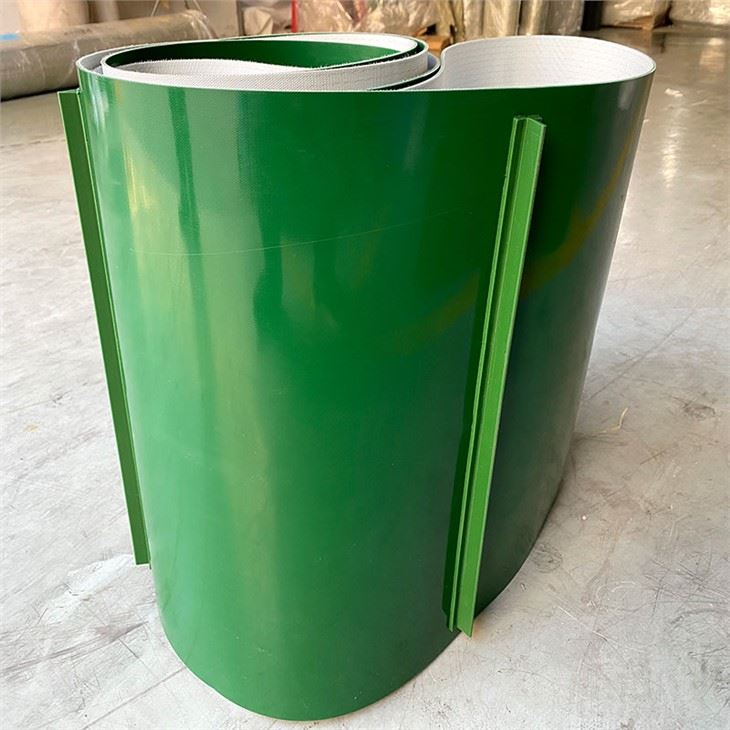

The Green PVC Cleated Conveyor Belt is a specially designed industrial conveyor belt with green PVC (polyvinyl chloride) as the base material, and vertical baffles (cleats/baffles) are added to the surface via high-frequency welding or mechanical connection. This design primarily addresses the problem of material slippage during steep incline transport and is widely used in agriculture, food processing, packaging, logistics, and manufacturing industries.
Structure and Materials
1. Belt Base: Polyester fiber woven layer, providing excellent dimensional stability and tensile strength.
2. Cover Layer: Food-grade or industrial-grade green PVC compound, with good abrasion resistance, oil resistance, corrosion resistance, and easy cleaning properties.
3. Stop Strips: PVC material of the same material as the belt body, firmly bonded to the belt body by high-temperature molding or high-frequency welding. The shape, height, and spacing of the stop strips can be customized according to requirements.
4. Color: Standard green (usually light or dark green), other colors (such as white, blue, and black) can be customized upon request.
Product Features
1. Material: Made of environmentally friendly green PVC material, safe and non-toxic, suitable for food transportation and other occasions with high hygiene requirements.
2. Anti-slip Design: The special textured surface effectively enhances friction, preventing items from slipping during transport.
3. Durability: Possesses excellent wear resistance and tear resistance, maintaining long-term use even under high loads.
4. Easy to Clean: The smooth surface of the PVC material facilitates cleaning and maintenance, suitable for working environments requiring frequent cleaning.
5. Versatile: Widely applicable in food processing, packaging, logistics, warehousing, and other industries, adapting to diverse conveying needs.
Specification
|
Color |
green |
Figure |
cloth |
|
Total thickness (mm) |
3 |
Construction |
pvc & ply |
|
Surface coating hardness (Shore A) |
60 |
Minimum drum diameter (mm) |
30 |
|
Force on 1% extension (N/mm) |
10.36 |
Lateral stability |
yes |
|
Production width (mm) |
customized |
Tensile strength (N/mm) |
≥160 |
|
Number of plies |
2 |
Low noise |
no |
|
Total weight (Kg/M2) |
5.0 |
Working temperature (℃) |
-10-+80 |
Video display
Product Advantages
1. Wide Conveying Angle: Enables continuous conveying of various bulk materials at any angle from 0-90 degrees, smoothly transitioning from horizontal to inclined or vertical, solving the conveying angle limitations of ordinary conveyor belts or patterned conveyor belts.
2. Large Conveying Capacity: Features large conveying capacity and high lifting height, effectively improving production efficiency.
3. Flexible Layout: Quick installation, small footprint, no transfer points, reducing civil engineering investment, flexible layout, and low maintenance.
Application Areas
1. Food Industry: Used for conveying and handling food products such as bread, vegetables, and fruits.
2. Manufacturing Industry: Used for conveying parts in production lines.
3. Logistics and Warehousing: Used for handling and sorting goods.
4. Agriculture: Helps improve efficiency in agricultural product processing.
Maintenance Tip
1. Regular Inspection:
Make sure the baffles and guides are intact. If any baffles are damaged or worn, they should be replaced to maintain effective performance.
2. Cleanliness:
Clean the conveyor belt regularly to prevent the accumulation of dirt, food particles or oil, especially in food-grade applications. This will help extend the life of the conveyor belt.
3. Tension and Tracking:
Check the tension of the conveyor belt to ensure it is properly aligned with the conveying system. Improper alignment will cause wear and affect overall performance.
Precautions
1. Temperature Limit: Not recommended for use in environments exceeding 80°C.
2. Avoid Sharp Objects: Although PVC is tear-resistant, it should still be protected from scratches by sharp objects.
3. Installation Recommendations: It is recommended to use a roller with a diameter of 40mm or more to ensure bending performance.
4. Cleaning and Maintenance: The surface is smooth and easy to clean; regular industrial cleaners can be used.
